Features

The easiest and most inexpensive way to set up your security/monitoring system.

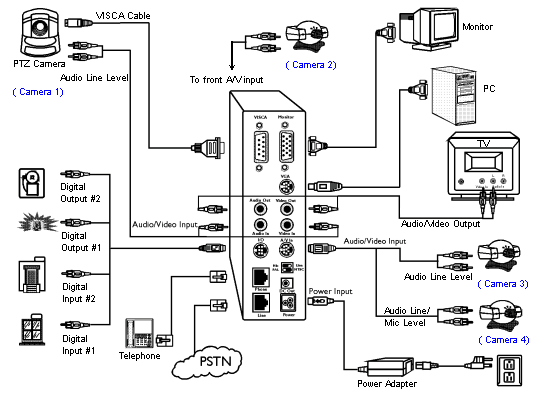

TeleScenic AE provides you the solution to efficiently set up your security system through regular phone line. You can connect up to 4 cameras to the unit and one of them can be the PTZ camera controllable from the remote site.

Applications include patient monitoring, site surveillance, multiple-view product demo and presentation…etc.

Features

Provides connectors for up to 4 cameras (video & audio)

Use TV or PC Monitor as display

All operation through telephone keypads

Easy to operation On Screen Display (OSD) menu

Auto answer with password feature supported

Built-in 33.6Kbps high speed modem

Infrared remote control

Auto save last setting

Provide external VISCA port

Support remote controllable I/O port

Video

4 external video input can be selected locally or remotely

Simultaneous remote and local video display

Full, 1/4 or 1/8 screen display capability

Video selectable up to VHS quality

Up to 15 frames per second video display

Provide PTZ camera control capability

Electronic video zoom in/out function supported

Electronic video pan/tilt supported

Privacy mode feature supported

Audio

Echo-free and no-delay high quality audio

Analog audio (MIC/Line) input support

Specifications

Fully Standards compliant	System: ITU-T H.324 Signaling: H.245 Channel Multiplexer: H.223
Video	Resolution:	(352x288 ) FCIF images (176x144 pixels) QCIF images (128x96 pixels) SQCIF images
	Frame Rate:	(SQCIF mode max): 15fps
	Video input:	External analog (PAL or NTSC) camera 4 Analog (composite) video input
	Video output:	Composite (NTSC/PAL) A/V VGA
Audio	Algorithm:	ITU-T G.723
	Frequency response:	50Hz - 3.4KHz
	Automatic gain control
	Audio input:		Telephone handset Mic input or Line in
	Audio output:		Telephone handset Speaker out or Line out
Network Interface	POTS (regular phone line): RJ-11 Max. baud rate: 33.6Kbps
Diagnostic	LED indication Self test

System Requirements

TV (with A/V input recommended) or PC monitor

Telephone set

Camera or video source with composite output

Package Contents

TeleScenic AE unit w/ power adapter
Standard phone (RJ-11) cable
Audio/Video terminal cables
VGA cable
I/O terminal cables
