teleScenic-128 - an ISDN-based video conferencing compact box (with built-in high-resolution camera) that can be directly connected to TV or PC monitor. Designed as a suitable solution for a wide variety of business applications, TeleScenic-128 provides real-time high-frame-rate visual communication with colorful and sharp picture quality.

The feature set includes:

Space saver for desktop video conferencing - switchable between PC environment and full-screen video conferencing view on the same monitor.

Flexible bandwidth - configurable between 64K and 128K to make video conferencing possible while using other ISDN-based office equipment simultaneously.

Wide-angle and high-resolution camera to capture wider and clearer views.

PIP (picture-in-picture) function delivers remote and local views at the same time.

Three video inputs - The built-in camera as well as two video inputs can be used to view different sites or multiple viewpoints at the same location.

AutoAnswer mode (including silent autoanswer) for security/surveillance purposes, with a quick handshaking process to initiate the connection.

The high-bandwidth transmission of video and audio through the TeleScenic-128 provides a superior video conferencing solution for serious business users. TeleScenic-128 is suitable to many business and non-business environments to help people deliver crystal clear messages and save a lot of travel expenditure.

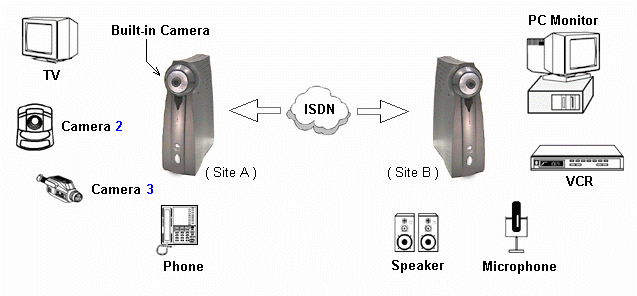

teleScenic-128 Connection Example

An Example of teleScenic-128 Connection Overview

Telescenic-128 can be used with either TV or PC monitor

You can connect two external cameras for more applications such as mulitple-view presentation or monitoring

You can use either one phone set or Microphone+Speaker for audio input/output

You can connect VCR with the Audio/Video output to make conference recording

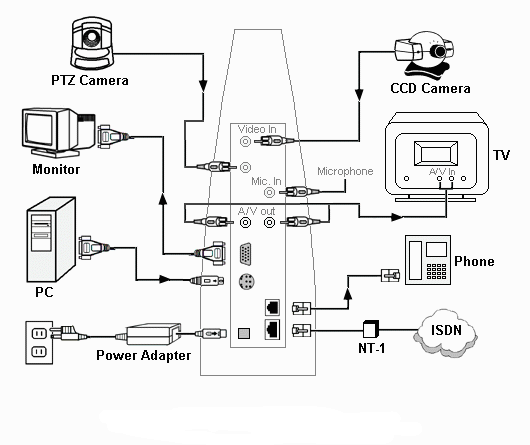

teleScenic-128 Connection Diagram

Application Examples

TeleScenic-128 can be used for a broad range of applications such as

Business meetings - To conduct off-site meetings on the timely basis.

Distance education - To create an interactive teaching environment.

Remote interview - For recruiting job applicants from the remote site.

Product demo - To show product features for clients at the remote site.

Telemedicine - To perform face-to-face consultation between doctor and patient or patient status monitoring.

Engineering and manufacturing - To show detailed and sophisticated images of product design and production.

Surveillance - To monitor the remote site clearly using the autoanswer function.

Sign language - To benefit those not able to use regular phone.

Corporate training - To optimize the manpower of those companies with branches nationwide or worldwide.

Customer service - To provide face-to-face service or consultation for demanding clients.

Entertainment - To provide instantaneous feedback on the changing status of events.

teleScenic-128 Specifications

Fully standards compliant	System: ITU-T H.320 Call Control: ITU-T H.242 Framing: ITU-T H.221 Multipoint Signaling: ITU-T H.241, H.243
Video	Algorithm: ITU-T H.261, H.263 Resolution: H.261 FCIF/QCIF, H.263 FCIF/QCIF FCIF: 352x288 pixels QCIF: 176x144 pixels) Frame Rate: 15fps (FCIF), 30fps (QCIF) Video Source: Built-in high-resolution camera Two Analog composite video inputs (NTSC/PAL) Video Output: Composite (NTSC/PAL) Output VGA output for PC monitor (DB-15) (Adjustable Picture-in-picture remote and local views)
Audio	Algorithm: ITU-T G.711 (50Hz - 3.4KHz@64/56Kbps) ITU-T G.728 (50Hz - 3.4KHz@16Kbps) Automatic Gain Control Audio input: Telephone handset RCA input Audio output: Telephone handset RCA output
Control	Touch-tone telephone DTMF tone control On-Screen-Display control menu Store last configuration AutoAnswer
Network Interface	ISDN signaling: ITU-T Q.921, Q.931 ISDN interface: S/T interface (with RJ-45 jack) (64K and 128Kbps bandwidth configurable)
Diagnostic	LED indication Self test
