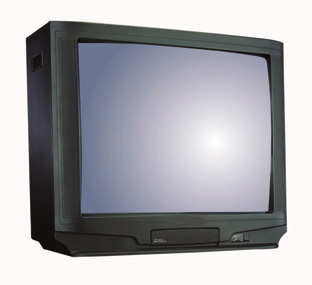

38" XGA (Model DM-7748D)
CRT: 38" (36" viewable)
Super Flat Screen-Arch Mask (D.B.F.)
VGA, VESA VGA, SVGA,
XGA, 8514A, MacII*
Connector: 15 Pin D-Sub
Speaker: 5Wx2
Front Control: Brightness, Contrast,
V-Size, V-Center, H-Size,
H-Position, Degaussing, Pin,
Key, Tilt, Rotation, Volume,
Main Power ON/OFF.
110/220 VAC/230 W Max, auto-switch
Power Management: EPA/VESA DPMS
Plug & Play: VESA DDC 1/2B (optional)
CRT Dot Pitch: 0.78 mm
Max Resolution: 1024 x 768 (Non-Interlaced)
Horizontal Frequency: 31.5-48Khz
Vertical Frequency: 50-120Hz
Bandwidth: 64Mhz
Monitor Dimensions (inch):
36x30x24.5(WxHxD)
Packing Dimensions: 42x37x32(WxHxD)
Weight (Net/shipping weight): 200/244 lbs.
*Optional adapter







34" SVGA (Model DM-6938V)

CRT: 34" (32" Viewable)
Super Flat Screen (D.B.F.)
VGA, VESA VGA, SVGA, 8514A, MacII*
Connector: 15 Pin D-Sub
Speaker: 5Wx2
Front Control: Brightness, Contrast, V-size, H-
Size, H-Position, Degaussing, Rotation,
Volume, Main Power ON/OFF.
110/220 VAC/200W Max, auto-switch
Power Management: EPA/VESA DPMS
Plug & Play: VESA DDC 1/2B (Optional)
CRT Dot Pitch: 0.92mm
Max Resolution: 800x600 (Non-Interlaced)
Horizontal Frequency: 15Khz, 31.5-38Khz
Vertical Frequency: 50-120Hz
Bandwidth: 48Mhz
Monitor Dimension (in.): 30x27x22(WxHxD)
Packing Dimension (in.): 35x32x26(WxHxD)
Weight(Net/Shipping weight): 126/140lbs.
*Optional adapter





 29" XGA (Model DM-5948D)

CRT: 29" (27" viewable)
Super Flat Screen (D.B.F.)
VGA, VESA VGA, SVGA, XGA, 8514A, MacII*
Connectors: 15 Pin D-Sub
Speaker: 5Wx2
Front Control: Brightness, Contrast, V-Size
V-Center, H-Size, H-Position,
Degaussing, Rotation, Volume, PIN, KEY,
Tilt, Main Power ON/OFF,
110/220 VAC/200W Max, auto-switch
Power Management: EPA/VESA DPMS
Plug & Play: VESA DDC 1/2B (Optional)
CRT Dot Pitch: 0.74mm.
Max Resolution: 1024x768 (Non-Interlaced)
Horizontal Frequency: 31.5-48Khz
Vertical Frequency: 50-120Hz
Bandwidth: 64Mhz
Monitor Dimension (in.): 26x24x20(WxHxD)
Packing Dimension (in.): 30x29x25(WxHxD)
Weight (Net/shipping weight): 93/106lbs.
*Optional adapter



Features/Benefits

Super Flat Screen: Ideal for viewing data. Digital data on a more rounded screen has more distortion and not as crisp. The flat screen creates a clear picture, viewable from many angles.

Microfilter CRT:
The Toshiba Microfilter- flat square CRT is a new technology that enhances the shadow mask-based CRT. Using a series of R-G-B and Black Enhanced filters, the Microfilter, creates a brighter image with a sharper focus than standard CRTs(Telestar 29 XGA)

High Resolution- 1024 x 768 & 800x600: This high resolution of XGA or SVGA, created by a higher scan rate circuit, develops a higher quality picture than SVGA or VGA. Most computer software is delivered by a standard of 1024x768 or 800 x 600. The 1024 x 768 resolution present a more concise picture, creating more space on the screen. You can use the 800x600 or 640x480 resolutions through the 1024x768 feature. When you buy a 800x600 or 640x768 computer monitor, you need to think about the feature that all computer software will eventually be shown at 1024x768. (XGA model and SVGA model)

Dual Dynamic Beam Focus: The CRT focus, on many large monitors, is good at the center but can be fuzzy in the corners. The dual dynamic beam focus improves this problem by creating a better CRT focus in all areas of the screen, even the corners. When you are in a win95? environment, the corner focus is very important for the user to be able to read the characters in the corners.

Invar Shadow Mask: When the electron beam passes through the shadow masked CRT, heat is produced, causing a shape distortion. The Invar Shadow mask keeps the shape longer with the same picture quality and clarity
(all models).

Plug and Play: The monitor will automatically communicate with the computer and set the resolution to the optimum setting. This allows for faster start-up, along with saving money and time.

VESA DPMS / Energy Start: All Monivision monitors will automatically power down at a predetermined time when using with a VESA DPMS video card. This feature will save more energy while using the monitor (all models).

Audio-Video Connections: Allows for the connection of a composite video source, external speakers, and input from PC or Macintosh, all at the same time for maximum flexibility (all models with visionbox).

Integrated TV-Tuner in visionbox: With a visionbox, you can have the capability for a 1024x768 or 800x600 hi-resolution computer display, video capability for DVD/LD/VCR, and Television viewing, all without external equipment. Simply use the remote control. (all models with visionbox).

Remote Control: with a user-friendly remote control to easily switch the display from a Computer signal to video signal (DVD/LD/VCR or SVHS signal), to TV and back to the Computer signal without having to move (all models with visionbox).

Build-In Stereo Speaker: With two built-in stereos peakers, you can easily connect your computer audio output or DVD/VCR audio output to the monitor, and have the stereo effect from monitor.

NTSC / PAL / SECAM multi-system: You can simply export the monitor to other countries without having to make major adjustments. The monitor will auto-switch between NTSC, PAL, and SECAM systems.

Two Year warranty: Through experience of producing large screen monitors (20" to 38"), along with having high reliable parts in the monitors, we believe the quality and precision allows us to offer a 2 year warranty.

Optional wireless KBD: You can purchase an optional wireless KBD together for use in presentations, in conference rooms, or just for web surfing.
